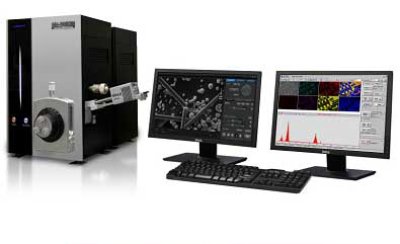

HiRox Table Top Scanning Electron Microscope (SEM)
SKU : SEM SH-5500M
Tabletop SEM SH-5000M
High magnification beyond the optical limit
Max. 100,000x Magnification
SE Detector (Option – BSE Detector)
1kV to 30kV Variable Accelerating Voltage
Multi-Vacuum Mode – Standard / Charge Up Reduction
Image Observation Ready within 2 min.
5-axis Strokes – X,Y,R, Z, T
4-Hole Variable Aperture (30/50/100/200µm)
Options – EDS System, Cooling Stage, Low Vacuum Control
฿0
฿0
Member
฿0
Member
฿0
Quantity
Product description
Non-conductive samples can be observed without coating, easy to use
Auto adjustment functions
System can be ready within 2 min after sample exchanged
Compact and flexible
Friendly GUI
Image resolution up to 5Megapixels
Good depth of field
Multiple image formats compatible
On-screen measurement: Distance, Angleetc.
