NanoStandard™ 17025 and MicroStandard™ 17025 Series Particle Size Standards
NIST traceability is typically established by an unbroken chain of measurements, referencing particles to SRMs from NIST. As such, this is basically an internal method, relying on ones own expertise and instrumentation, whereas the NanoStandard 17025 and MicroStandard 17025 size standards consists of material from the original batches certified by an independent Metrology Institute.

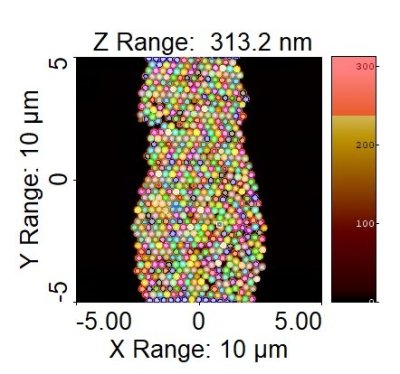

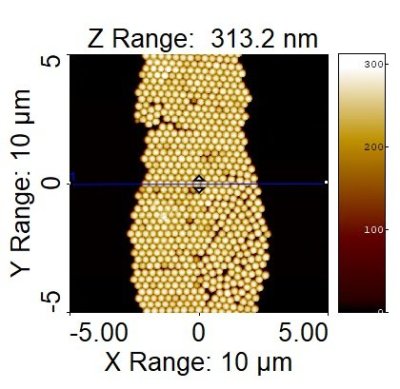

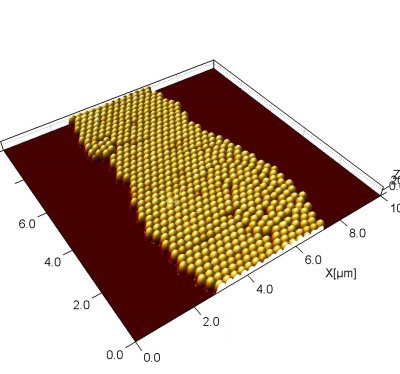

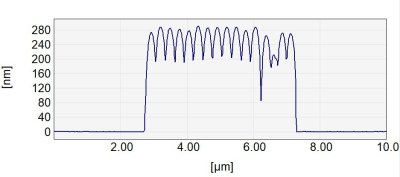

Applied used Atomic Force Microscopy (AFM) measurements are performed under accreditation, following DS/EN ISO/IEC 17025.
ISO/IEC 17025 is a quality standard, founded by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It is the definition of requirements for laboratories to ensure quality, reliability and repeatability of performed tests and calibrations.
The calibration method and certificate thus created ensures that Applied Microspheres NanoStandard 17025 and MicroStandard 17025 particle size standards are traceable to the International System of Units (SI), including NIST, and meet the criteria obligatory for instrument calibration under ISO/IEC 17025. They therefore meet the highest international metrological standard available.
NanoStandard 17025
| Part No. | Nominal Diam. | Mean Dia. | Volume |
| 13010-05 | 100 nm | 89,7 nm | 5 mL |
| 13030-05 | 300 nm | 331,4 nm | 5 mL |
| 13050-05 | 500 nm | 512,6 nm | 5 mL |
MicroStandard 17025
| Part No. | Nominal Diam. | Mean Dia. | Volume |
| 13100-05 | 1 µm | 1,046 µm | 5 mL |
| 13500-05 | 5 µm | 4,906 µm | 5 mL |
